* ELOO • ECO-FRIENDLY WATERLESS COMPOSTING TOILET *

A Waterless Compostable Toilet Outhouse can be anything you want it to be.
It can be purely functional • Decorative • Fit into the Natural Environment

EcoLoo Waterless Inddustrial
Toilet Outhouse

—

EcoLoo Waterless
Compostable Toilet
Outhouse

—

EcoLoo Waterless
Compostable Toilet
Inside
of the Outhouse

Eco Toilet - Waterless Toilet - Composting Toilet

• PRODUCT INFORMATION  •

What is a waterless / water free toilet system?

A sanitation system that does not require any water to function.
Not only does it save on water use, but it is entirely isolated from the
surrounding environment and cannot contaminate
underground water resources.

How can sanitation work without water ?

How does it work ?

We receive many questions about the toilets, of which
"How does it work " is the most frequently asked

Toilet hut ( optional )

When a toilet is to be installed outside a home,
we can supply a toilet hut that has been designed especially for the
ECOSAN toilet system.

These Huts are perfect where
Temporary ablution is required,
or are needed on
Non Municipal
approved ablution sites.

The waterless compostable toilet
can however be installed
using any toilet outhouse, hut, or structure.

The following is a brief description of the
Waterless CompostableToilet
concept as well as it's main features
•
No plumbing required
•
No drains
•
No pipes
•
Waterfree
•
Low odour levels
•
Chemical free
•
Lightweight
•
Easy to install

• How Does it Work?  •

The human excrement falls down a vertical chute (2)
and into one end of a specially designed helical screw conveyor (3).
Every time the toilet lid (1) is lifted,
a mechanism rotates the conveyor.
With each rotation the human excrement slowly moves along,
taking approximately twenty five days before falling into a reusable collection bag (4).
It takes six months for the bag to fill with dry and odourless waste.
Through the uniquely designed ventilation pipe (5),
adequate airflow is provided for the dehydration / evaporation, deodorising process.
Human excrement consists of roughly 95% moisture.
As the solids dry in the conveyer the urine and moisture is vented into the atmosphere.
The solid waste then dries into a compost-like material,
roughly 5 - 10% of it's original mass.
The dry waste is manageable and can be processed in the following ways.
Use it in the making of compost Dispose of it by using municipal waste services
Use it as a source of fuel
•
Large objects like beverage cans,
disposable nappies or other objects
accidentally dropped down the chute
will not block the system,
It is however not advisable to do this

• Step Loo •

Mining and other high volume usage units.
As a variation on the home model designed for normal use,
a special modification was made to accomodate installations
where there is a high frequency of use of toilets.
•
This model uses a drum instead of a bag for waste collection.
The unit is therefore not a completely dry system and also means
that the drum needs to be emptied on a regular basis.
This unit is ideally suited for places where the installation
of sewerage pipes are difficult,
for instance underground mines or very busy public places.

• TECHNICAL SPECIFICATIONS  •

•  Eco-Toilet Waterless Compostable Loo  •

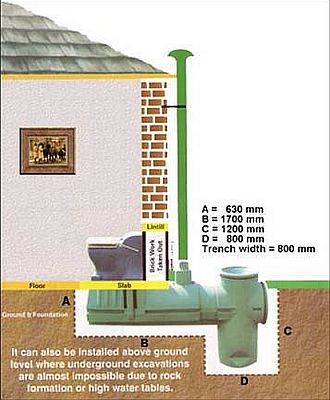

• Installation Diagram •

Extractor Fan Options:

Wind Turbine - Solar Fan - Electric Fan

Installation is very easy
•
Once the trench is completed it is a matter of lowering the toilet into it,
ensuring that the toilet is level, and filling up the trench with sand.
